MC-106J
Built on a rugged tracked chassis, it operates completely independent of external support towing, moving easily through steep quarries, muddy construction spaces, and rugged mining sectors.
Specifications;
Crushing Capability (Capacity): 130 – 400 Metric Tons per Hour (t/h)
Operating Weight: 43 Metric Tons (47.4 US Tons)
Mobility Type: Hydraulic Tracked / Crawler Chassis
Crusher Model: J-106 High-Performance Jaw Crusher
Maximum Feed Input Size: 700 mm (27.6 in)
Output / Discharge Range (CSS): 70 mm – 200 mm
Crusher Unit Weight: 18 Metric Tons
Crusher Standalone Power: 110 kW (6-pole motor)
Whats App: +8613805698362
MC-250IS
The MC-250IS is a tracked mobile impact crusher designed for primary and secondary crushing applications.
Specifications;
Type : Impact Crusher
Model: MC-250IS
Capacity: 180–350 t/h
Hopper Capacity: 6 m³
Feed Capacity: 500 t/h
Maximum Feed Size: 700 mm
Feed Opening :1300 × 920 mm
Rotor Size: Φ1240 × 1300 mm

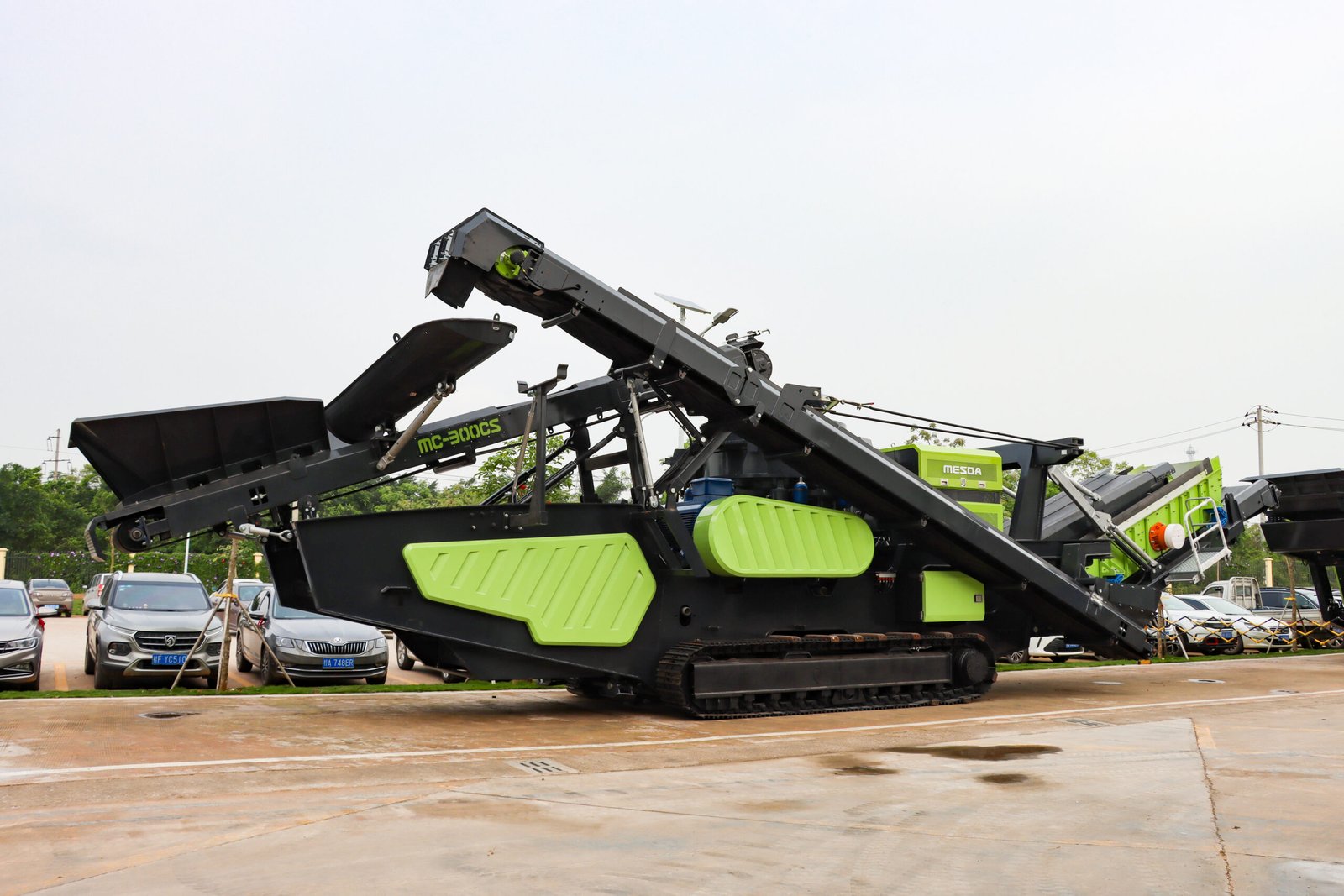

MC-300CS
Based on available manufacturer and industry sources, the MC-300CS is a crawler-type mobile cone crusher designed for aggregate and mining applications.
Specifications;
Crusher Type: Mobile Cone Crusher
Mobility: Crawler Track Mounted
Capacity: Up to 300–400 TPH
Max Feed Size:210–750 mm (depends on configuration)
Hopper Capacity:5 m³
Crusher Weight:13–16 t (crusher unit)
Whats App: +8613805698362

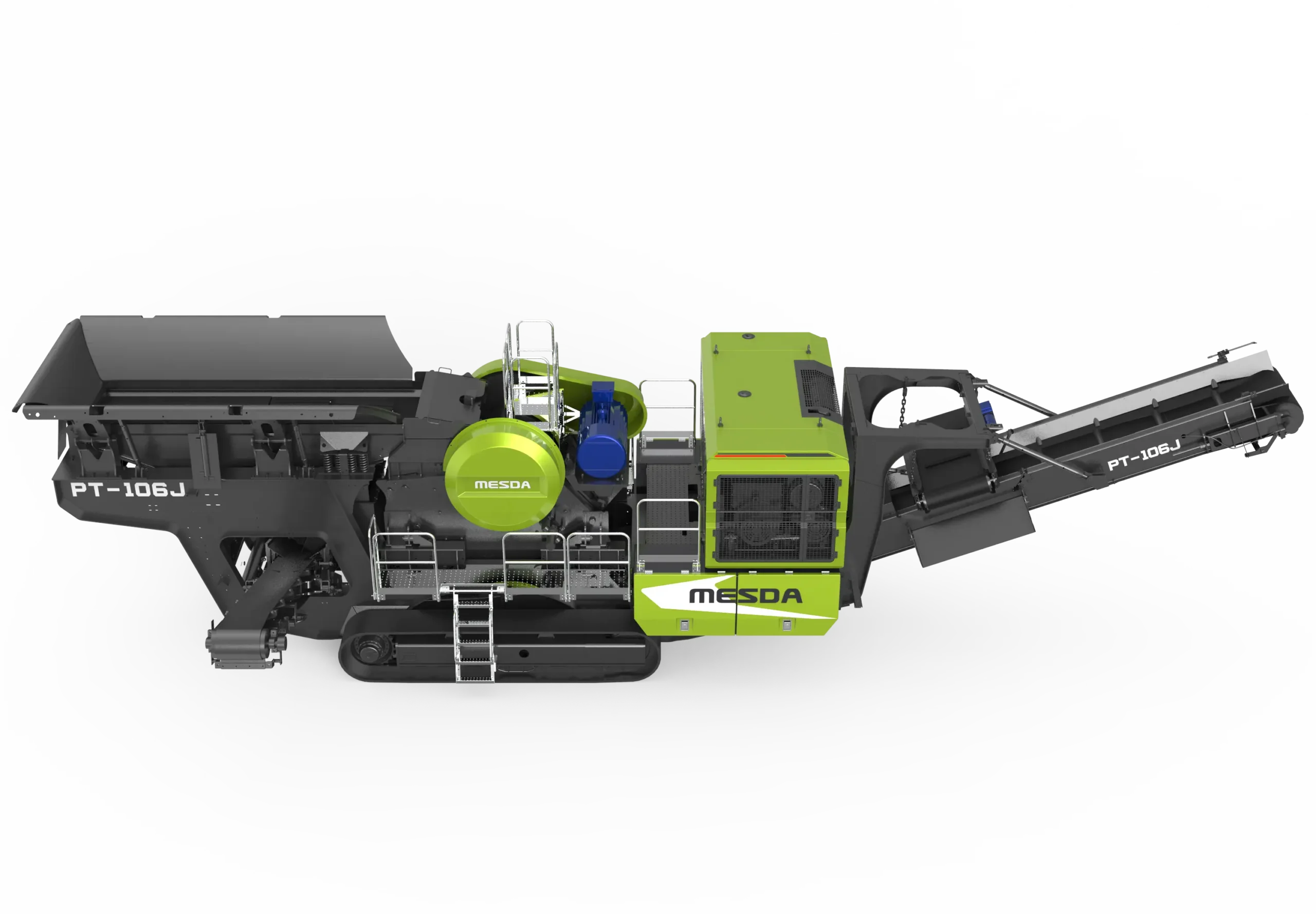

PT -106J
PT-106J is a diesel-electric tracked jaw crusher designed for quarrying, mining, demolition waste, and aggregate production.
Specification;
Type:Mobile Jaw Crusher
Crusher Model: J-106
Feed Opening: 1060 × 700 mm
Maximum Feed Size: 700 mm
Crushing Capacity: 130–400 t/h
Feeder Capacity: 450 t/h
Hopper Volume: 5 m³
Engine Power: 360 kW
Generator Power: 320 kW (350 kW spare)
Total Machine Weight: 47 ton
Whats App: +8613805698362

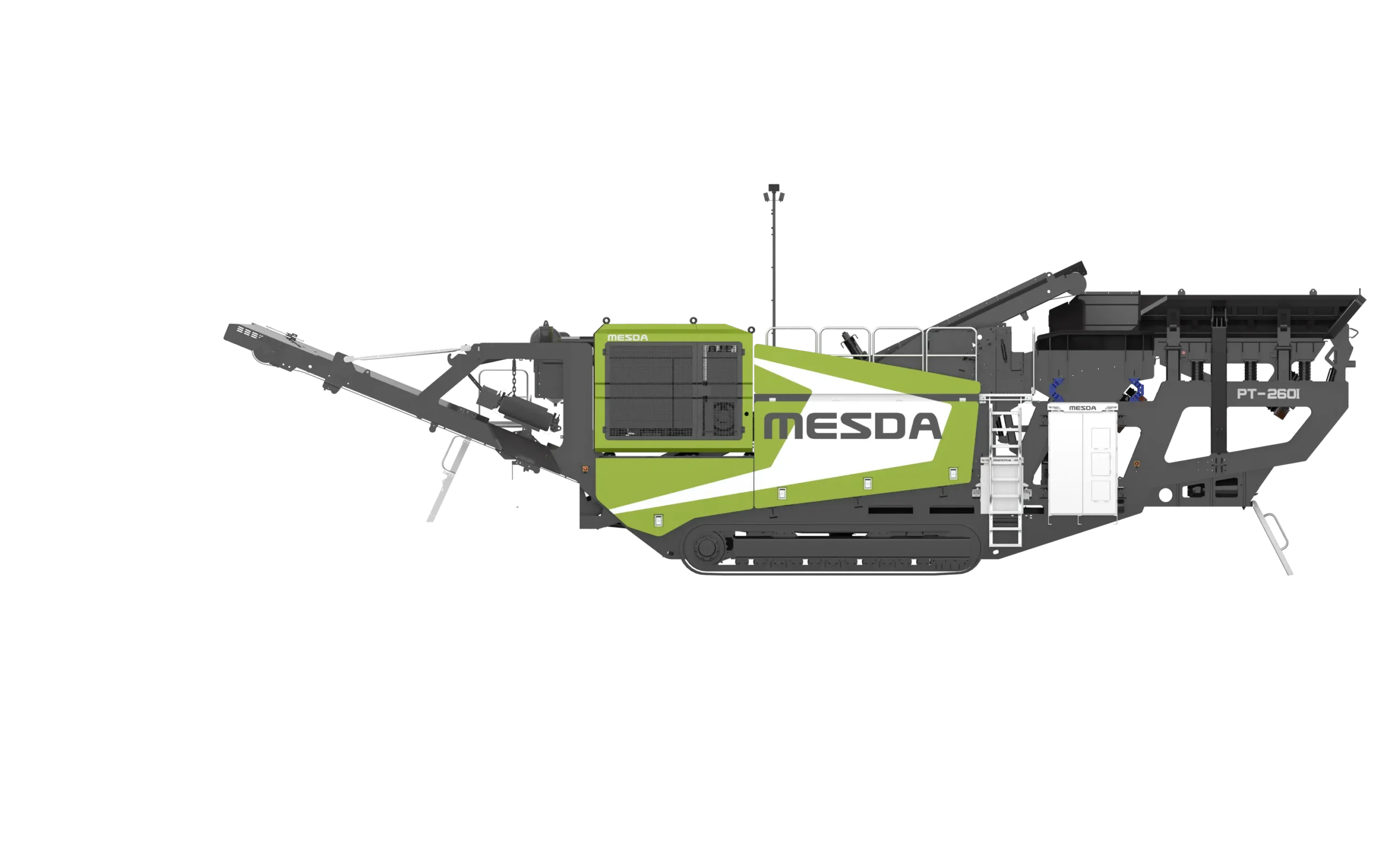

PT-260IS
The PT-260IS Primary Jaw Crusher is a highly efficient and reliable crusher designed for the primary crushing of hard and medium-hard materials such as granite, limestone, basalt, and river stones. With a compact structure and adjustable output size, it delivers consistent performance while minimizing maintenance costs.
Specifications:
Crusher Type: Jaw Crusher (Primary)
Feeding Size:250–300 mm
Capacity: 50–200 TPH
Crusher Power: 55–90 kW
Motor Type: Electric / Diesel Optional
Jaw Opening: 260 mm × 150 mm
Output Size:0–80 mm (adjustable)
Hopper Capacity:2–3 m³
Weight (Crusher Unit): ~8–10 t
Overall Machine Weight: ~15–18 ton
Whats App: +8613805698362

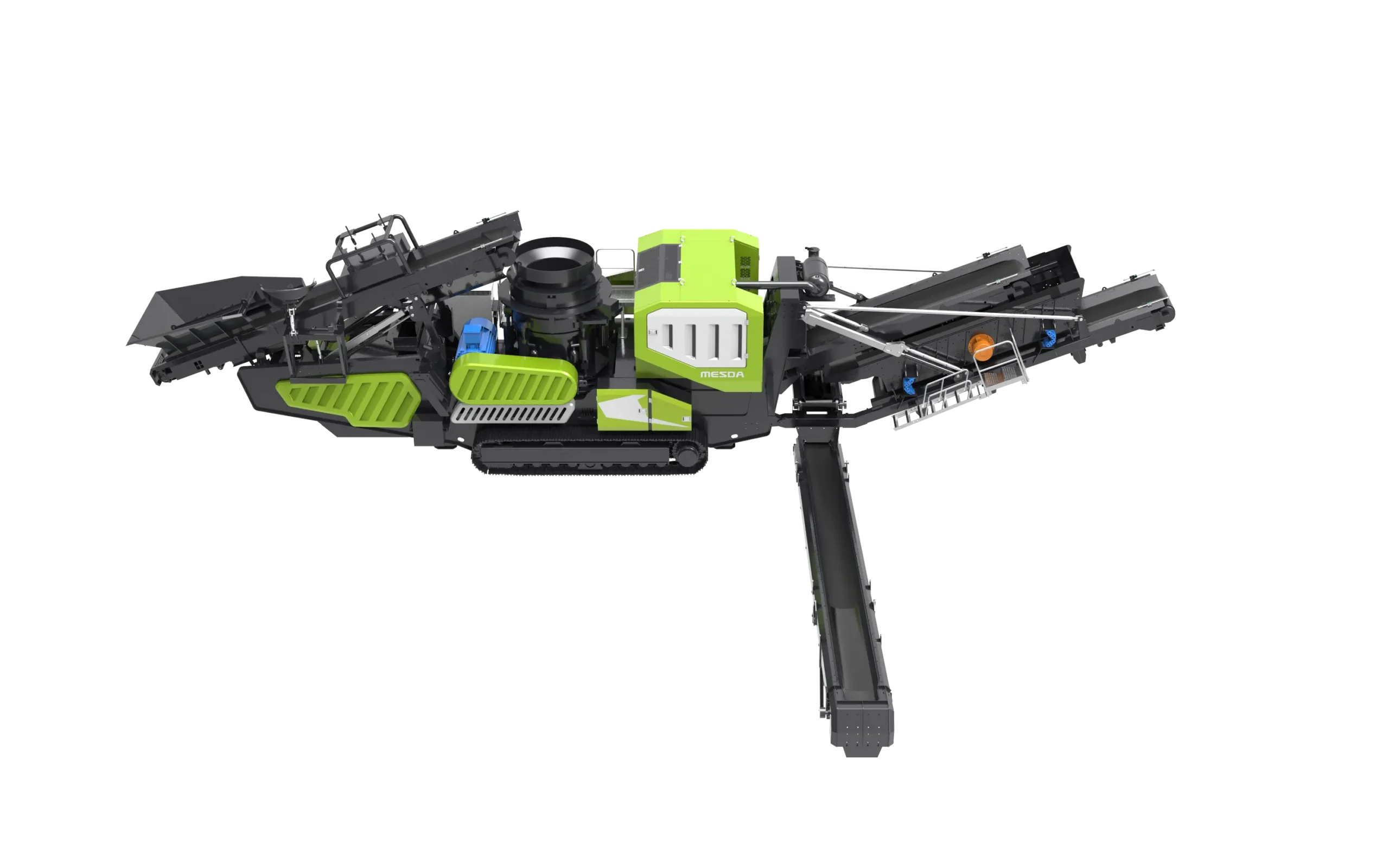

PT-300CS
The PT-300CS Mobile Cone Crusher is a high-performance tracked cone crusher designed for secondary and tertiary crushing applications. It delivers excellent productivity, high reduction ratios, and superior particle shape, making it ideal for and other hard rock materials. Its mobile design offers flexibility for quarrying, mining, and cumulative production projects.
Specifications:
Crusher Type: Mobile Cone Crusher
Cone Model: C-300 Single Cylinder
Capacity: 120–300 TPH
Feed Capacity: 400 TPH
Hopper Capacity: 5 m³
Max Feed Size:210 mm
Output Size: 0–45 mm
Cone Crusher Power: 250 kW
Oil Station Power: 113 kW
Generator Power:500 kW
Total Machine Weight: 49 ton
Whats App: +8613805698362

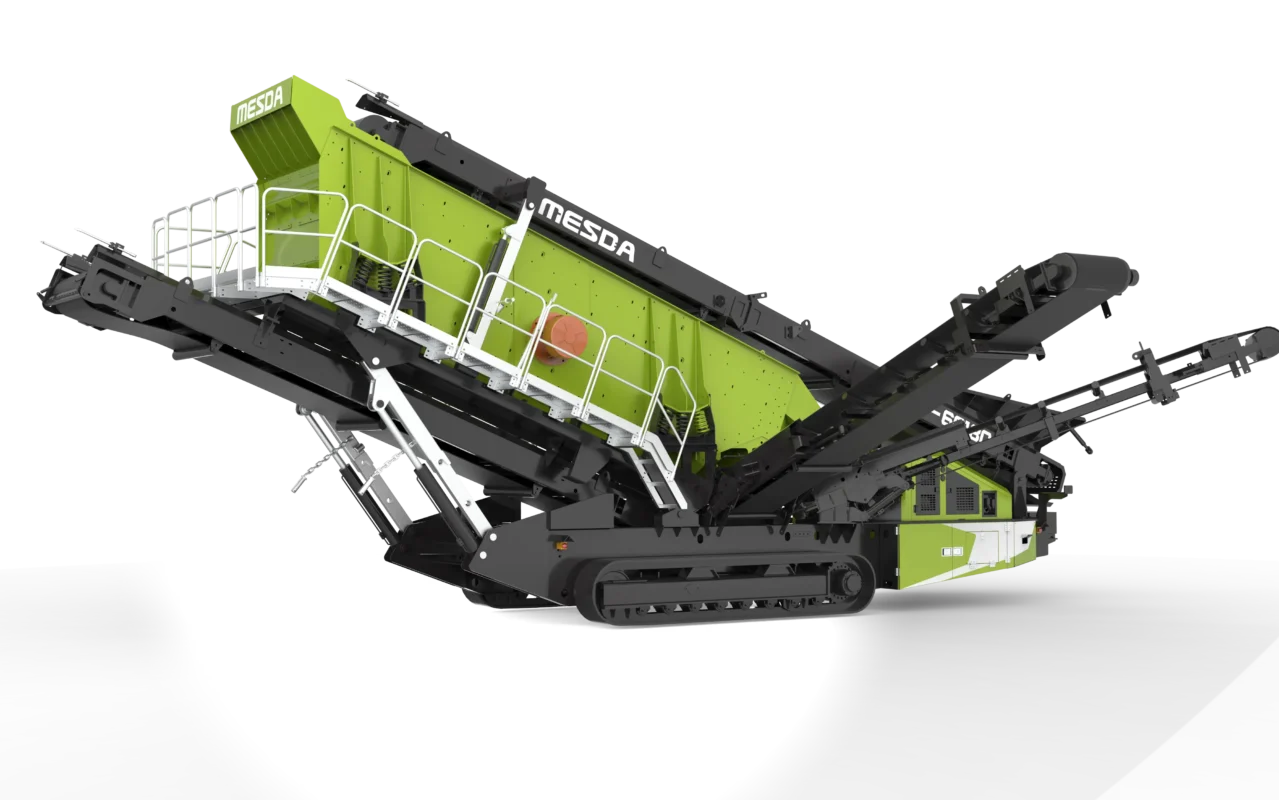

PT-6018C
The PT-6018C Mobile Screener is a high-capacity tracked screening plant designed for quarrying, mining, recycling, and aggregate production. Equipped with a large 3-deck vibrating screen and powerful screening capability, it efficiently separates materials into multiple sizes while maintaining high productivity and operational reliability.
Specifications:
Type: Mobile Screener
Screening Capacity:120–300 TPH
Feed Capacity:350 TPH
Max Feed Size:200 mm
Hopper Volume:3 m³
Screen Size:6000 × 1800 mm
Screen Decks:3 Decks
Screen Power:19 kW
Generator Power:100 kW
Hydraulic Station Power: 55 kW
Total Weight: 31 ton
